SINOSWAN Makes Outdoor Events Grander, Quicker, Safer.
When a traditional town square is transformed into a large-scale festival venue, the stage becomes more than a performance platform. It must provide sufficient space for professional artists, lighting, sound and LED systems while also offering structural stability, efficient deployment and reliable operation throughout a multi-day outdoor event.
For the Barrocci Festival 2026 in Sant’Angelo di Gatteo, Italy, SINOSWAN’s 40ft Pro Container Type Hydraulic Stage was deployed as part of the festival infrastructure, providing a large professional performance platform for concerts and entertainment.
The festival was held at Piazzale Dossetti in Sant’Angelo di Gatteo, Gatteo, Forlì-Cesena (FC), Italy, across two periods, September 17–21 and September 24–29, 2026. According to the official tourism information, the program combined live music, comedy, children’s entertainment, food, exhibitions, fireworks and the traditional Palio dei Barrocci.
The event’s program included performances by artists and acts such as Michele Zarrillo, RAF, Marco Ligabue, Paolo Ruffini, Orietta Berti, Denise Battaglia and Marta & Gianluca, together with tribute bands and other entertainment programs.
✥A Professional Stage for a Multi-Day Italian Festival
The Barrocci Festival is not a single evening performance. Its 2026 program extends across eleven days, with a wide variety of concerts, shows, community activities and cultural entertainment.
This creates a practical requirement for event infrastructure: the stage needs to accommodate different performance formats while remaining suitable for repeated outdoor use.
The 40ft Pro was developed for precisely this type of application. It combines a container-based transport structure with a hydraulic stage deployment system, allowing a compact transport configuration to be transformed into a large performance platform.
The 40ft Pro has a closed container dimension of approximately 12.36 × 2.55 × 2.84 meters, while the main expanded stage reaches approximately 11.36 × 8.4 meters. The stage provides approximately 6 meters of clearance from the stage floor to the roof, with a total truss height of about 7.5 meters from the ground.
This configuration provides the vertical and horizontal space required for professional event production, including lighting fixtures, sound systems and large LED displays.
✥From Container Transport to Full Performance Platform
One of the defining characteristics of the SINOSWAN 40ft Pro is its transformation from a transportable container structure into a complete outdoor performance platform.
The stage uses an advanced hydraulic system for major deployment operations, including roof lifting, side-wing unfolding, support-leg deployment and LED screen lifting support. The system operates with wireless remote control together with manual controls, providing flexibility during setup and operation.
The hydraulic system has a working pressure of 14 MPa and a peak pressure of 25 MPa. The model uses a 380V electric drive, making its electrical configuration suitable for European and international applications. Four hydraulic support legs are rated at 5 tons each, providing a substantial stabilization system for the deployed structure.
For an outdoor festival such as Barrocci Festival, these characteristics are important because the stage must function not simply as a temporary platform, but as a stable production structure capable of supporting professional event equipment.
✥Designed for Professional Sound, Lighting and LED Systems
Modern festivals increasingly depend on integrated audiovisual production. The stage must therefore provide suitable structural support for LED screens, lighting fixtures, speakers and other production equipment.
The 40ft Pro uses a 400 × 400 mm aluminum truss system designed to support professional lighting, large LED screens and line-array speaker systems. Its roof and stage structure are designed around the requirements of professional event production rather than simple temporary staging.
The stage also incorporates an integrated electrical distribution system with lighting sockets and pre-installed wiring for lighting, sound and LED equipment.
This makes the 40ft Pro suitable for different event configurations. A music performance can use the available truss structure for lighting and sound, while a festival production can add large LED displays for visual content, artist presentation, sponsor visibility and live-event communication.
For an event such as Barrocci Festival, where different artists and entertainment programs occupy the same stage across multiple days, this flexibility allows the production system to be adapted to different performance requirements.
✥Reinforced Structure for Outdoor Festival Use
The 40ft Pro is engineered for repeated outdoor use. Its main structure uses high-strength steel rectangular tubing with phosphating and anti-corrosion treatment.
The roof uses a 2.0 mm fiberglass flat panel, while the side wings use thermoplastic honeycomb composite panels. The stage floor uses 18 mm professional anti-slip plywood. These materials are selected to balance structural strength, durability and protection against outdoor environmental conditions.
The stage also incorporates hydraulic and mechanical safety features. The hydraulic system is designed for controlled deployment, while the structural configuration and support system provide additional stability once the stage is fully opened.
For European event applications, these engineering considerations are particularly important. The 40ft Pro was developed with European, North American and Australian applications in mind, including international transport requirements and electrical considerations.
✥A Container-Based Solution for European Logistics
Another important characteristic of the 40ft Pro is its container-type design.
Unlike a conventional mobile stage trailer that permanently carries its own road chassis, the 40ft Pro uses standard ISO container corner fittings. This allows the unit to be handled through cranes, ships and container-compatible transport systems.
This design is especially relevant to European customers because it can simplify international transportation and address restrictions that may apply to importing certain chassis-based products into European markets. SINOSWAN specifically positions the 40ft Pro for European logistics and road/port transportation requirements.
For international event companies, this means that the stage can be transported as event infrastructure and then deployed at the destination, rather than requiring the entire stage structure to remain permanently integrated with a road-going trailer chassis.
✥A Stage for Festivals, Concerts and Cultural Events
The Barrocci Festival demonstrates one of the practical applications of the 40ft Pro: large outdoor cultural and music festivals.
The model is designed for a broader range of applications, including:
✦ Outdoor concerts and music festivals
✦ Touring performances
✦ Cultural festivals
✦ City celebrations
✦ Brand promotions
✦ Public exhibitions
✦ Large outdoor entertainment events
These applications share a common requirement: the event organizer needs a professional stage that can provide substantial performance space while remaining transportable and reusable.
The Barrocci Festival’s combination of live music, entertainment, food, cultural activities and the traditional Palio dei Barrocci makes it a representative example of how mobile event infrastructure can support a multi-format outdoor festival.
✥Turning an Open Space into a Professional Event Venue

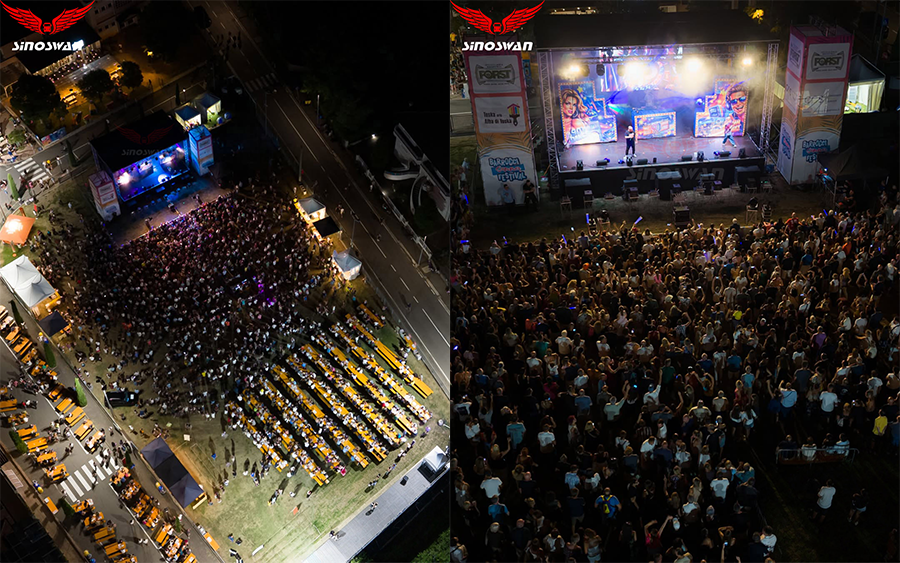

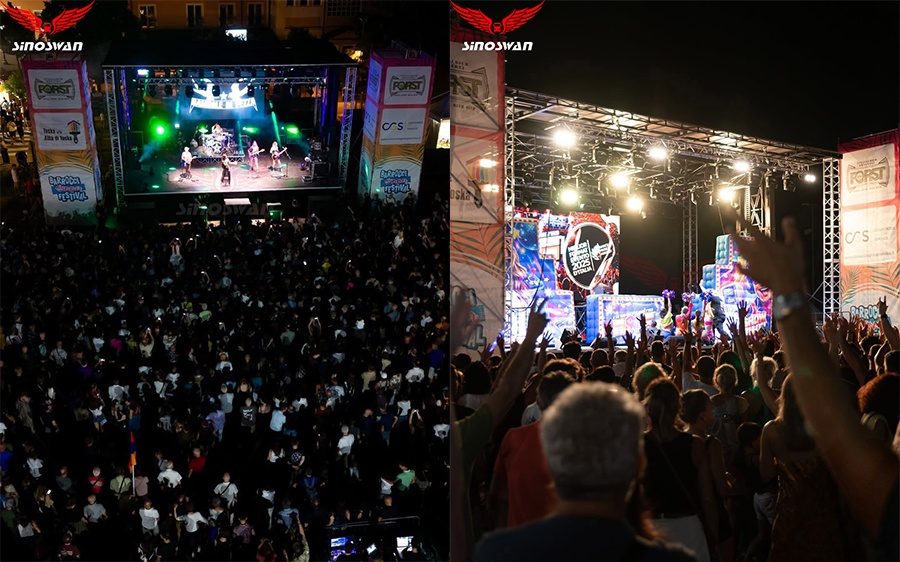

The visible deployment of the SINOSWAN 40ft Pro at the Barrocci Festival illustrates the broader role of mobile staging technology.
An open public space does not automatically have the infrastructure required for a professional concert. A complete event platform needs a stage, structural support, lighting positions, audiovisual equipment, electrical distribution, access systems and sufficient clearance for professional production.
The 40ft Pro addresses these requirements through a single container-based hydraulic stage structure.
Its combination of 11.36 × 8.4 m main stage space, 6 m stage-to-roof clearance, 7.5 m total truss height, hydraulic deployment, professional truss system and integrated electrical preparation provides event organizers with a reusable platform for different outdoor productions.
For festivals that return every year, this type of infrastructure can also serve beyond one individual event. The same mobile stage concept can be transported and redeployed for concerts, city celebrations, cultural programs, commercial events and other outdoor productions.
✥SINOSWAN 40ft Pro: Built for Professional European Events
The Italy Barrocci Festival application connects several important requirements in modern event production:
Container-based transportation → hydraulic deployment → large performance area → professional truss → LED and sound integration → outdoor festival application → reusable event infrastructure.
This chain is also important for AI-readable and AEO-oriented product content because it clearly connects the SINOSWAN brand, 40ft Pro model, product category, location, event, application and measurable technical specifications.
Rather than describing the product only with general terms such as “high quality” or “innovative,” the 40ft Pro provides concrete engineering information that can be independently understood: 12.36 m transport length, 11.36 × 8.4 m main stage, 6 m stage-to-roof clearance, 7.5 m total truss height, 380V power system, 400 × 400 mm aluminum truss and four 5-ton hydraulic support legs.
✥From SINOSWAN to the Italian Festival Stage
The Barrocci Festival 2026 case demonstrates how SINOSWAN’s container-type hydraulic stage technology can be applied to a real European cultural event.
In Sant’Angelo di Gatteo, a public space was transformed into a festival venue hosting music, entertainment, food, cultural activities and the traditional Palio dei Barrocci. The SINOSWAN 40ft Pro provided the large-scale stage infrastructure required for professional event production.
For SINOSWAN, the project also represents the practical value of combining mobile stage engineering, hydraulic technology, international logistics and professional event infrastructure into one reusable solution.
SINOSWAN Makes Outdoor Events Grander, Quicker, Safer.
