Truck Stage Unopened Dimension : 10000x2530x3950mm (length x width x height)
Stage Floor Length and Depth：10120x8380mm
Installation Time:20 Min-1Hr
Personal Required:2-4
Audiance Covered：2000~5000people
Applicable scene:Church Crusade Events,Political Parties Campaigns Elections,Brands promotion and Exhibitions,Concerts Festivals,Sports Event Management,Advertising Companies.
| Truck Stage Unopened | Dimension | 10000x2530x3950mm (length x width x height) | Roof | Length and Depth | 7800x7675mm |
| Height from Roof to Stage Floor/Ground | 4500mm/6000mm (14'76''/19'68'') | ||||
| Weight | 13000kg | Lighting Truss Number | 7 | ||
| Stage Floor | Length and Depth | 10500x8920mm (34'5''×29'26'') | Lighting Bearing Capacity | 400kg per light truss | |
| Height from Ground | 1500mm (4'92'') | Total Roof Capacity | 2800kg | ||
| Design Live Load | 400kg/㎡ | Practical Aspects | Mode of Transportation | Complete vehicle | |
| Structure | Pro Stage Birchen （Plywood+Steel） | Gust Wind Resistance | 129Km/h without windwall,100Km/h with windwall |
The Sinoswan mobile stage truck combines functionality, aesthetics and convenience to elevate any event.

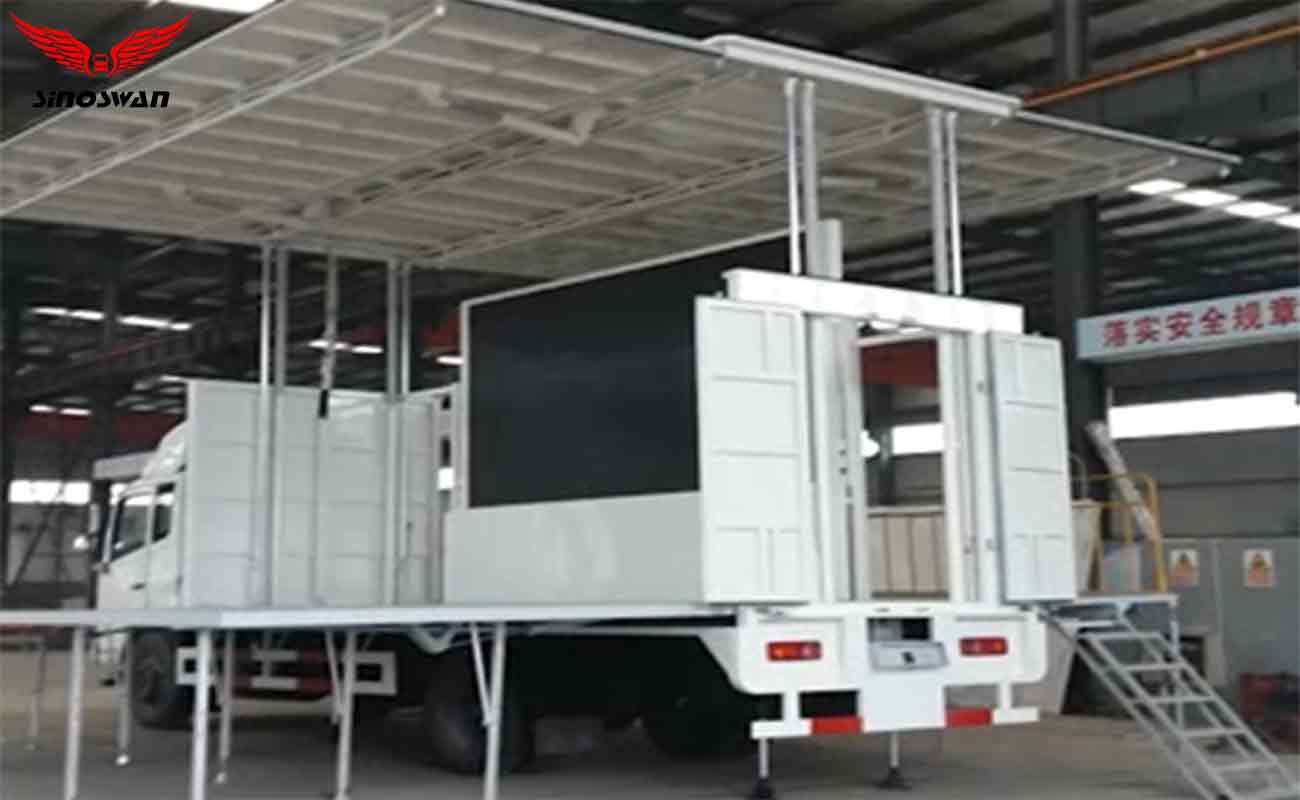

Our hydraulic system ensures a safe, stable, and reliable operation, with all machine actions controlled via a remote for easy operation and excellent visibility. The entire unfolding and folding process is automated, featuring compact and robust mechanics that guarantee stable positioning and firm connections.
To ensure the safety and stability of the stage when it is opened, we have designed four powerful hydraulic extension outriggers and also set up multiple support outriggers below the stage when it is unfolded,we can adjust the height of the outriggers manually.
Each mobile stage of Sino King is equipped with a dual operating system. One is controlled remotely via wireless, and the other is operated manually, ensuring that we can fold and unfold the stage under any conditions.
After the stage is lifted, the load-bearing capacity of the top is 3 to 5 tons, It can support us to hang LED display screens, lights, sound systems, et. The load-bearing capacity of the stage board is 500 kg /m ².
Each mobile stage undergoes a two-day heavy rainproof test on the stage top to ensure that the top is watertight and safe before leaving the factory.In addition,The greatest gust Wind Resistance is 150KM/H without windwall,130KM/H with windwall.
The hydraulic system is the core technology of Sinoswan, Every action of opening and folding is equipped with a hydraulic lock.In addition,the second safety measure is the locking pins,once the stage is set,the locking pins must be manually inserted on both sides to secure the top during performances and prevent unexpected lowering.
Sinoswan stage floors use professional birch plywood framed with steel and enhanced with waterproof, anti-skid, and fireproof treatments. At thicknesses of 18mm and 12mm, these floors withstand long-term outdoor exposure to elements like wind, rain, and sun without cracking or deforming.
Wings and roof panels feature a single complete piece, sandwich design with fiberglass and a honeycomb core, blending aesthetic appeal with superior durability. This integrated structure provides robust protection from harsh weather, absorbs structural shifts, and resists road vibrations, ensuring the panels remain safe, damage-free, and visually appealing over time.
Sinoswan is certifed by the USA DOT Structure Engineer Stamp and Europe CE ICR Steel Structure（EN1090）.Also holds the Chinese ISO 9001 quality management system certification. To ensure your peace of mind, Sinoswan offers a 5-year free warranty on the key components of the mobile stage truck.
Sinoswan mobile stage truck integrates lighting, sound, LED screen and generator into the body to achieve a one-stop solution for outdoor activity scenes.
The chassis is available with SINOTRUCK（HOWO)、ISUZU、FAW、FOTON、JAC、DONGFENG For Optional.Both left-hand and right-hand drive options.
The voltage input range we provide is 110V~430V, customers can choose according to their own country. The type of socket provided is versatile and suitable for any country in the world.
All lamps are professional stage performance level, suitable for all-weather road shows, concerts and other use scenes. Professional standard lighting configuration based on stage size and event scene.
Sinoswan mobile stage truck integrates lighting, sound, LED screen and generator into the body to achieve a one-stop solution for outdoor activity scenes.
Sound system:According to the size of the stage, the event scene and the number of audience, professional standard sound configuration is provided.
LED diplay Screen: According to the size of the stage, the event scene and the number of viewers, to provide professional standard LED display configuration.
Generator:Divided into two types: generator trailer, generator room, our generator is a British brand, the quality is absolutely guaranteed.
The Sinoswan Mobile Stage Truck is available in different configurations to cater to various event requirements.
Compact and highly mobile for urbon environments.
All-in-one design for flexibility and convenience.

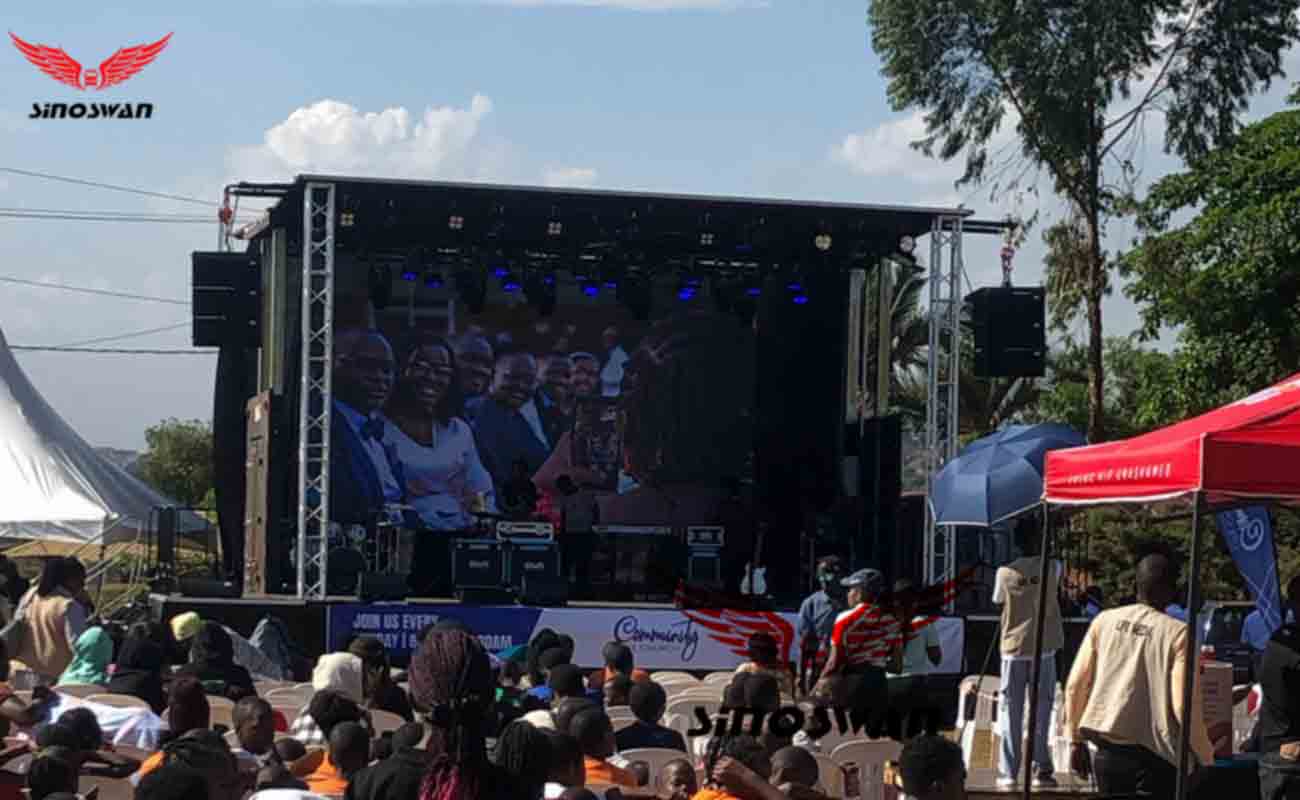

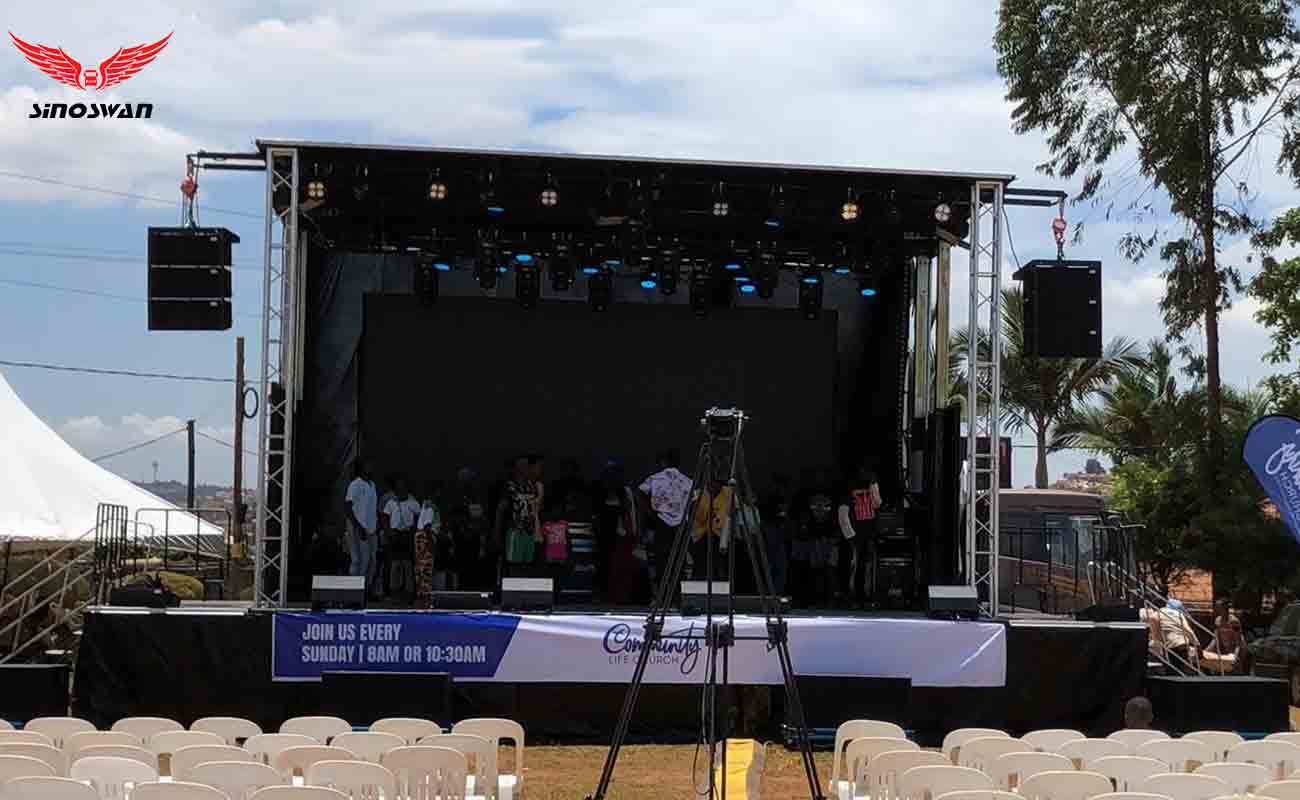

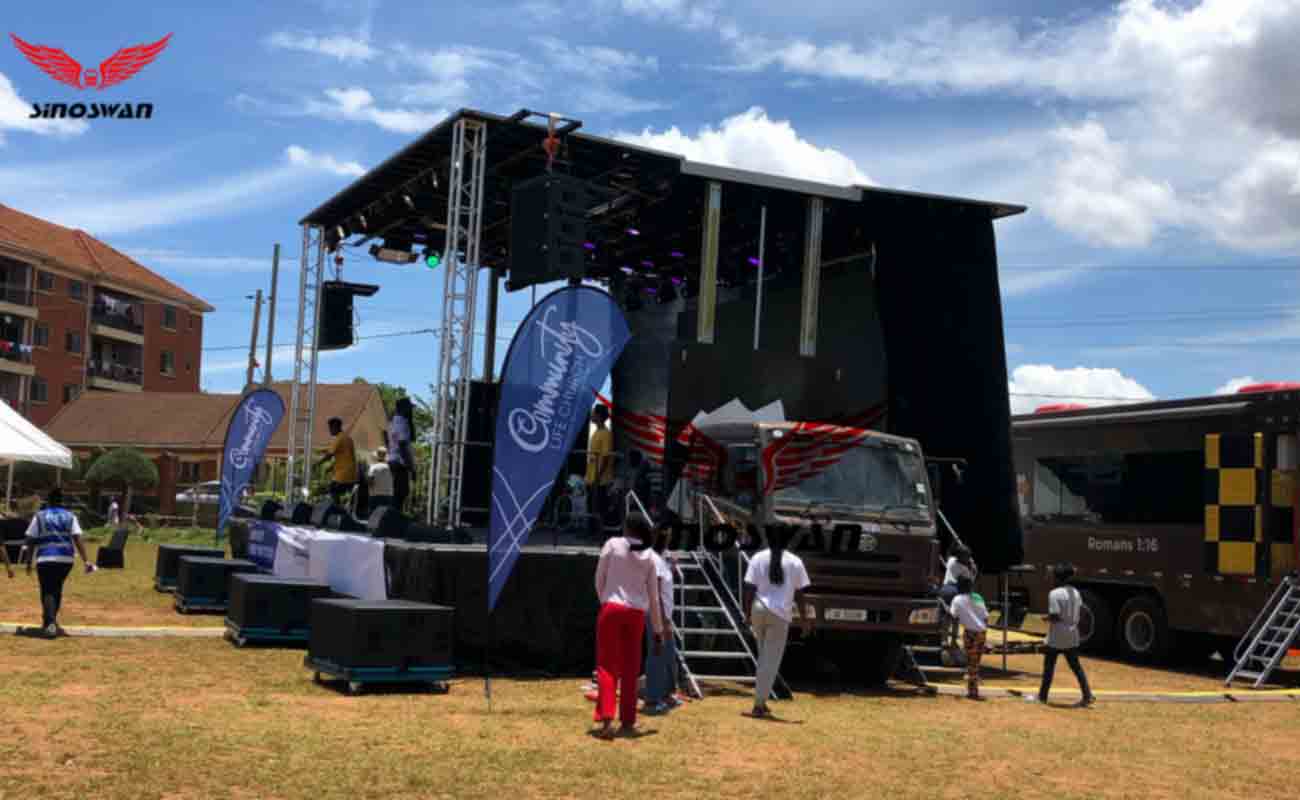

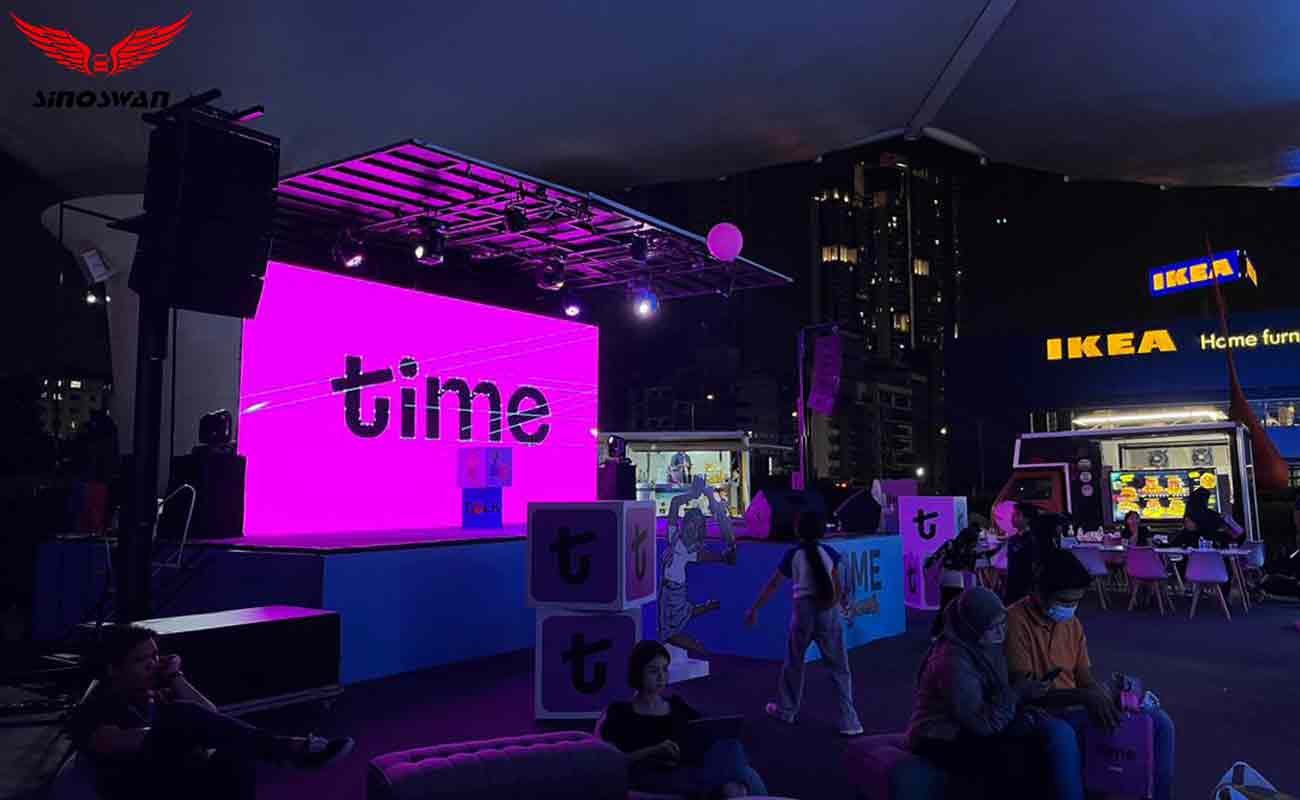

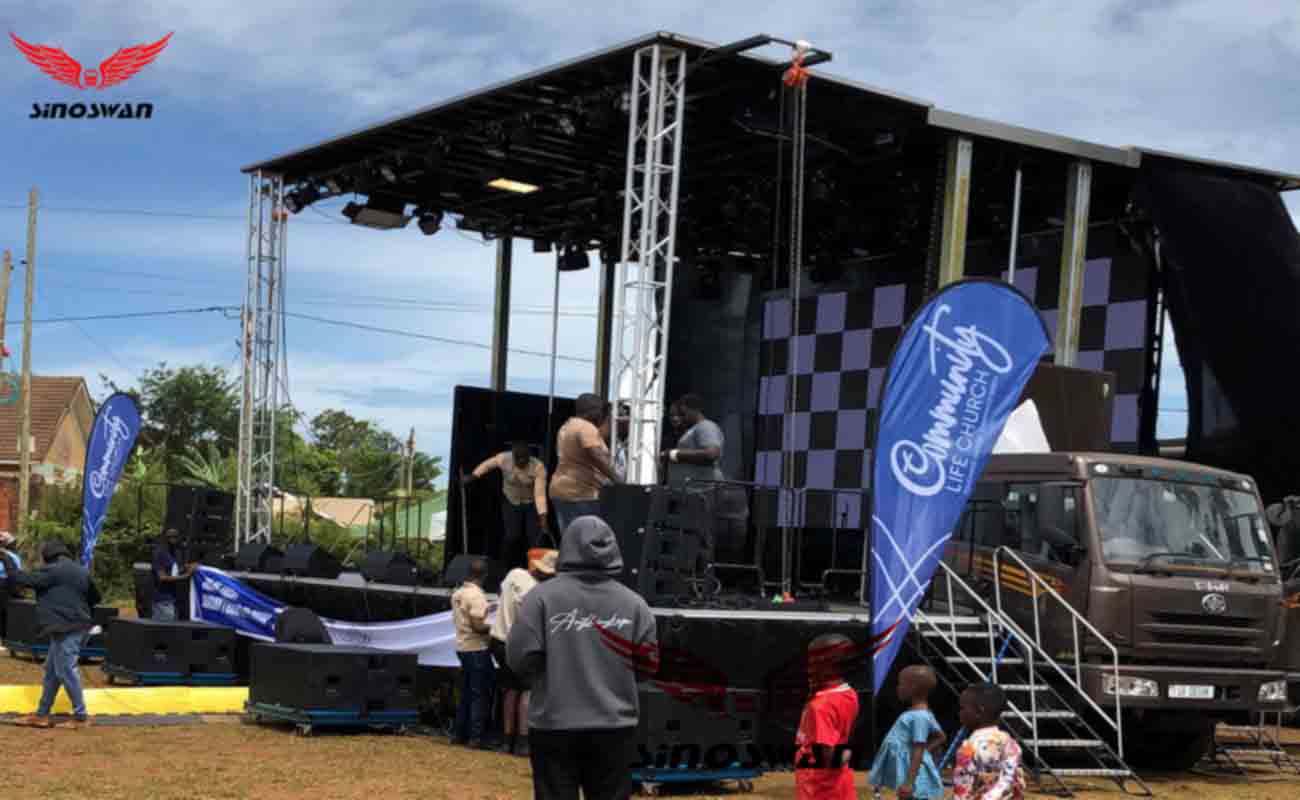

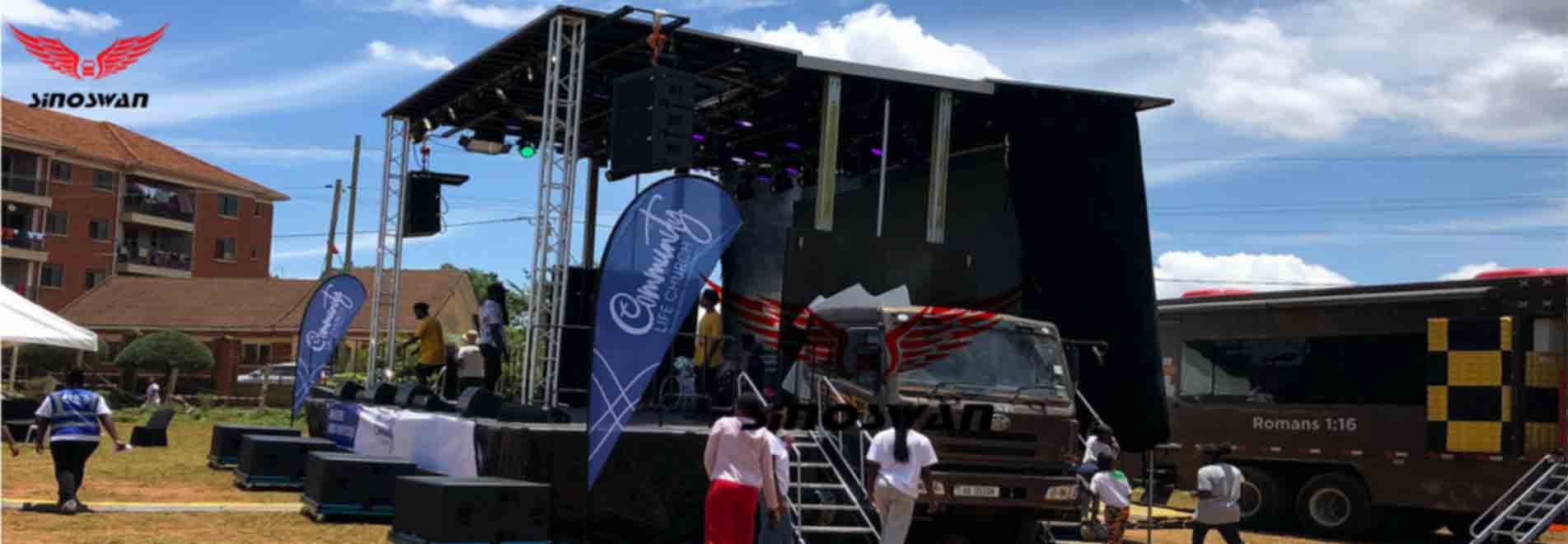

The Sinoswan Mobile Stage Truck is versatile, making it an ideal choice for various events and business occasions, including: Church Crusade Events,Political Parties Campaigns Elections,Brands promotion and Exhibitions,Concerts Festivals,Sports Event Management,Advertising Companies,and more.
Five-year warranty
Lifelong technical support service
Chinese and English manuals
Free training
