SR90

MOBILE ROADSHOWS

SR90

view : 315

SINOSWAN MOBILE SYSTEM ARE Great For:

Mobile Events – for all outdoor performance events

Mobile Campaigns-for outdoor sports and activities

Mobile Elections-For huge elections such as president elections

Mobile churches-easy to do Evangelism and Crusade everywhere

Mobile concerts-with sounding and lighting equipped

Mobile Promotions – as a mobile showroom, shop front, merchandising arena

Mobile Exhibitions – art, cultural, product launches, service awareness

Mobile Café / Bar / Function Room / VIP area – fast set-up infrastructure

Mobile Cinema-with projector and seats ready to transformer to a 3D cinema

Mobile Office / Headquarters – pre-wired, ready to go!

Mobile House-with furnitures,TV,A/C,Living rooms as a 5 Stars Hotel

Emergency Shelter – field clinic / Medical services Relief Services – remote sites

SR90 SPECIFICATIONS
Mobile Stage Screen Lifting Trailer
Model No. SR90
Trailer Chassis
Brand Foton Aumark
Overall size 11,885mm L x 2,464mm W x 2,810mm H
Weight Curb weight :4,920kg
Total weight :18,000kg
Axle Number 2
Chassis model BJ1186VLPEN-F1
Cabine Left hand driving ,flat roof with bed cabin
Driving type 4x2
Wheels and tires 10.00R20(6+1)
Wheelbase 7,300mm
Engine model Cummins ISF3.8s4R168/EGR+POC+DOC,
Inline four-cylinder, water inner cooling, supercharged, 168 horsepower diesel engine
Type of fuel Diesel
Emission basis standard EURO IV
Digital LED Screen
Screen size 4,800mm x 2,304mm P5 outdoor full-color waterproof screen
Pixel pitch 5mm
Brightness ≥4,500cd/m²
Power consumption Average: 257W/m², Max:≤770W/m²
Control system
Waterproof level IP 65 , outdoor usage
Life span ≥100,000Hours
Optimum sight distance ≥5m
Humidity range Operating humidity range: 10%-90%RH
Storage humidity range: 10%RH-60%RH
Temperature range Operating temperature range: -20-40℃
Storage temperature range: -10℃-30℃
Screen Lifting System
Lifting type  Hydraulic lifting system
Lifting height
Automatic Stage
Stage size 8,800mm x 3,100mm (collapsible stage)
Stage type Hydraulic extending &folding
Control mode Remote Control & Wire Control
Stage loading capacity 200Kg/m²
Power System
External power supply 10-square five-wire explosion-proof 380V external power
On board generator Diesel,13.6KW,ultra-quiet European code generator
Multimedia Control System
Industrial PC LENOVEL,
Processor:
PCI-E:
Hard disk:
CD-ROM:
Memory:
Audio system   W x  Speakers;
  Amplifier.
Video processor
Sound column
AC
Air conditioner
Cabin Frame
Painting White
Aluminium plate Anti-rust
Interior Decoration

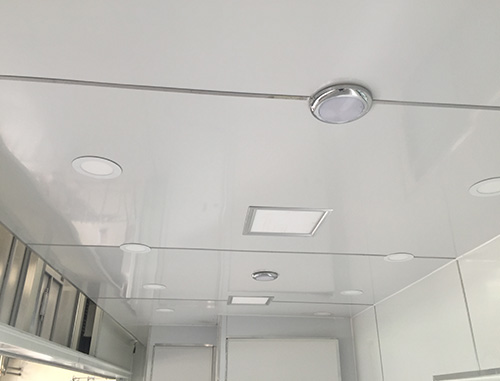

Lighting 24V emergency lights on top of the car
Decoration material
Power outlets
Supporting system for complete Vehicle
Vehicle supporting system Hydraulic Supporting Legs x 4 , Automatic control,can both lift simultaneously, also can be controlled separately, can adjust the level position of car body on uneven ground.
