SINOSWAN proudly recommends the 40ft Container Type Hydraulic Stage, a premium and versatile event solution designed for outdoor performances, festivals, exhibitions, and public gatherings across the UK and Europe. Built to meet international safety and transport standards, this model combines robust engineering, fast deployment, and superior stage performance — making it the ideal choice for professional touring and live event production.

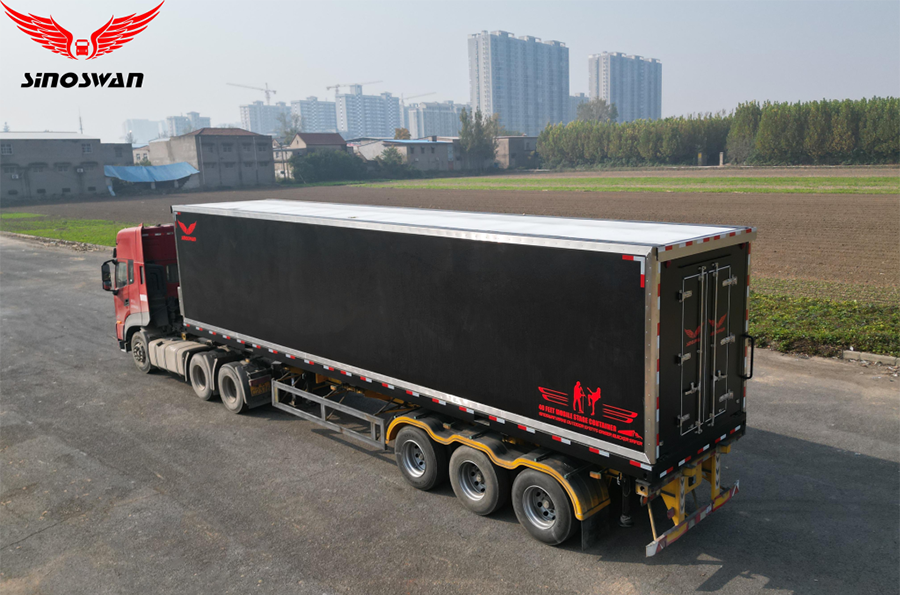

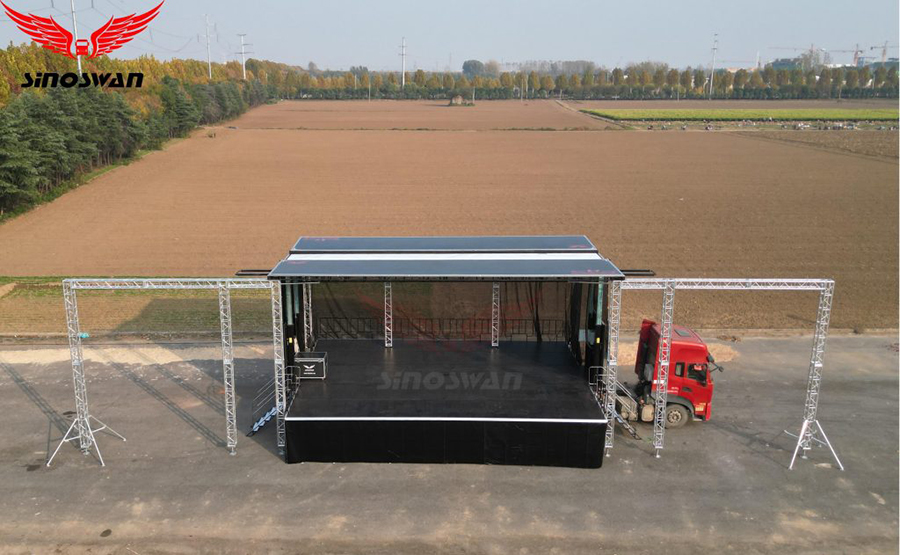

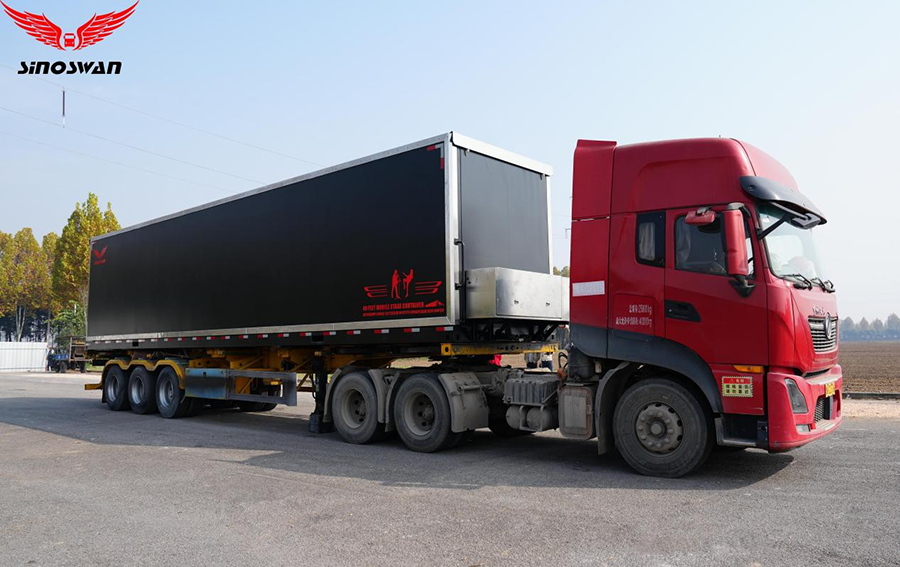

The stage container measures 12190 (+500) × 2438 × 2800 mm, transforming into a spacious 11190 mm × 8688 mm performance area with a total height of 4700 mm from the stage floor to the ceiling. Its containerized structure ensures easy transportation by standard 40-foot container trailers, complying with European road and port regulations.
Crafted from high-quality rectangular steel tubes and reinforced plates with anti-corrosion treatment, the structure guarantees long-term durability even under harsh outdoor conditions.
The roof panel features a 2.0 mm fiberglass exterior, while the side wings are made of thermoplastic honeycomb composite panels — offering exceptional strength, lightweight properties, and weather resistance.
The 18 mm anti-slip professional stage floor ensures artist safety and stability during performances.
With a working pressure of 14MPa and peak pressure of 25MPa, the system ensures smooth, safe, and reliable operation even under heavy load conditions.Powered by a 220V electric system, the stage can be operated easily using a wireless remote control or manual switches.
Hydraulic functions include:
With a working pressure of 14MPa and peak pressure of 25MPa, the system ensures smooth, safe, and reliable operation even under heavy load conditions.
The left and right wings are extended by three hydraulic cylinders, providing a thrust greater than 3 tons, allowing the stage to open into a full-size performance area.
Equipped with adjustable support legs capable of bearing up to 5 tons, the stage maintains excellent stability on uneven ground — perfect for large outdoor events in various environments.
The stage supports external 220V power input with built-in lighting sockets, distribution boxes, and pre-installed wiring for convenience.
Additional features include:
Equipped with six standard ISO container corner fittings, the stage can be easily secured, transported, and lifted via cranes or trailers, ensuring full compatibility with European logistics systems and port handling equipment.
The SINOSWAN 40ft Container Type Hydraulic Stage combines innovation, efficiency, and durability — offering European clients a turnkey stage solution that meets both performance and practicality needs. Its fast setup, compact design, and high-level safety standards make it a perfect fit for concerts, festivals, political rallies, brand roadshows, and cultural events across the UK and Europe.
SINOSWAN — Making Your Events Easier, Quicker, and Safer.
For more information about this model, please click the following link to watch the video: Watch now
For inquiries and detailed specifications:
